All-Weather Monitors

IP67/IP68 NEMA 6 rugged displays with CNC machined sealed enclosures and MIL-DTL 38999 connectors engineered for marine, military, and harsh outdoor environments.

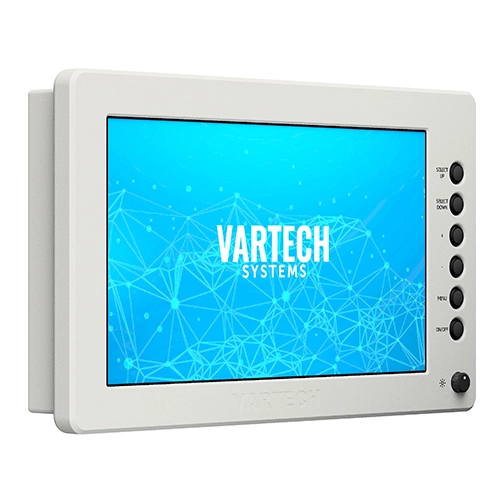

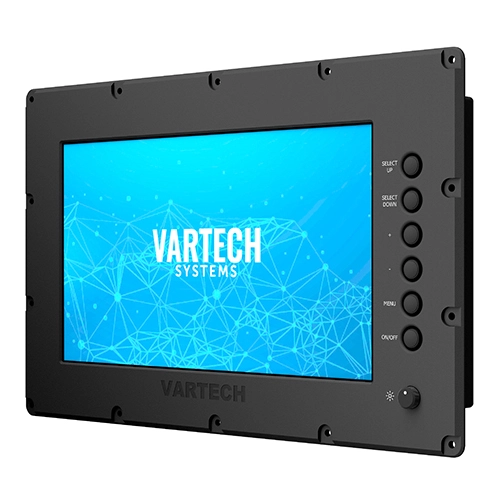

A rendering of a 15.6" All-Weather rugged outdoor VESA-mount monitor by VarTech System, built to meet NEMA 6 and IP67/IP68 standards
Full Specifications

Built to spec. No compromises.

Every unit is configured to your application's exact requirements, display size, I/O configuration, mounting style, and compliance level.
I/O & Connectivity
Connector Sealing
IP67, MIL-DTL 38999
Environmental
Ingress Protection
IP67, IP68
NEMA Rating
NEMA 6
Operating Temp
-40°C to 70°C
Cooling
Fans
EMI / EMC
MIL-STD 461-AS (All-Surface), MIL-STD 461-FS (Front-Surface)
Compliance & Certification
Military
MIL-STD 461, MIL-STD 1275, MIL-STD 3009
COMPLIANCE
VarTech is BABA, ITAR, NDAA, TAA, and RoHS compliant, and certified to ISO 9001:2015.
Enclosure
Finishes
Standard powder coat (black, white, or gray), custom color powder coat
Product Lines

How All-Weather compares.

All-Weather is VarTech's flagship rugged line. See how it compares to DiamondVue and ToughStation across the specs that matter.
Product Lines Comparison — VarTech Systems
Specification
Display sizes
Enclosure
IP rating
Connectors
Temperature
MIL-STD
Hazardous area
DiamondVue
6.5″ to 43″
Aluminum enclosure or stainless steel and aluminum enclosure
IP65, IP66
Industrial-grade connectors
−10°C to 60°C
461 · 810 · 1275 · 3009
CID2-Certified Products
ToughStation
8.4″ to 43″
Aluminum or stainless steel fabricated sealed enclosure
IP65, IP66
Waterproof circular connectors
−20°C to 60°C
461 · 810 · 1275
CID2-Certified Products, Certified Purge Systems
Features & use cases.

Extreme Temperature Resistance

Our All-Weather monitors are designed to withstand extreme temperatures, operating from -40°C to 70°C depending on configuration. The NEMA 6 enclosures ensure reliability in all types of weather.

NEMA and IP Protection

Built to NEMA 6 and IP67/IP68 standards with corrosion resistance for on-deck marine applications.

Mounting Configurations

Available in Console, Console Extreme, Panel, Rack, RAM, and VESA mounting styles.

Rugged Touchscreens

Touchscreen options engineered for wet conditions supporting glove and stylus use.

Sunlight-Readable Displays

High-bright displays up to 1800 nits for full outdoor readability in direct sunlight.

Marine and Maritime Use

Corrosion-resistant, saltwater-resistant enclosures for shipboard applications.

Military and Defense

Displays built to meet MIL-STD specifications for vehicle-mounted and field deployments.

Oil, Gas, and Energy

Monitors built to meet IP and NEMA standards for outdoor energy infrastructure monitoring.
