ToughStation Workstations

A fully sealed, IP66, NEMA 4/4X HMI workstation built for nonstop industrial operation in washdown environments, food processing, oil and gas, and demanding manufacturing applications.

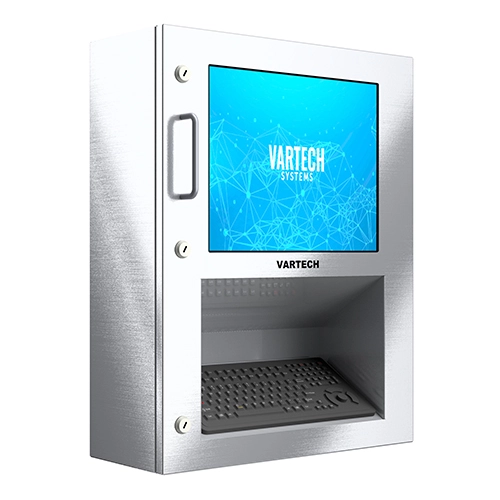

A rendering of VarTech's ToughStation fully sealed HMI workstation with an ergonomic keyboard
Full Specifications

Built to spec. No compromises.

Every unit is configured to your application's exact requirements, display size, I/O configuration, mounting style, and compliance level.
Compute & Memory
AI Accelerator
Supports GPU/NPU
Processor
Up to 14th Gen Intel® Core™
System Memory
Up to 64 GB
I/O & Connectivity
Connector Sealing
IP69
Environmental
Ingress Protection
IP65, IP66
NEMA Rating
NEMA 4, NEMA 4X
Operating Temp
-20°C to 60°C
Cooling
Fans
Compliance & Certification
Military
MIL-STD 810
COMPLIANCE
VarTech is BABA, ITAR, NDAA, TAA, and RoHS compliant, and certified to ISO 9001:2015.
Enclosure
Finishes
Standard powder coat (black, white, or gray), custom color powder coat, grained stainless steel
Product Lines

How All-Weather compares.

All-Weather is VarTech's flagship rugged line. See how it compares to DiamondVue and ToughStation across the specs that matter.
Product Lines Comparison — VarTech Systems
Specification
Display sizes
Enclosure
IP rating
Connectors
Temperature
MIL-STD
Hazardous area
DiamondVue
6.5″ to 43″
Aluminum enclosure or stainless steel and aluminum enclosure
IP65, IP66
Industrial-grade connectors
−10°C to 60°C
461 · 810 · 1275 · 3009
CID2-Certified Products
ToughStation
8.4″ to 43″
Aluminum or stainless steel fabricated sealed enclosure
IP65, IP66
Waterproof circular connectors
−20°C to 60°C
461 · 810 · 1275
CID2-Certified Products, Certified Purge Systems
Features & use cases.

Fully Sealed Keyboards

Our fully sealed silicone or membrane keyboard options provide an operator interface while protecting the HMI from environmental factors.

Functionality-Enhancing Peripherals

VarTech's industrial workstations are always customized to the unique needs of each customer's application.

They offer numerous options for peripherals, including security-focused biometric fingerprint scanners, RFID readers, and cameras.

ToughStation workstations can also be equipped with function buttons, thermal printers, and touchpads to meet additional end-user needs in a wide range of environments.

High-Bright Displays

Ready for bright factory settings or outdoor installations, ToughStation HMIs' high-bright sunlight-readable displays offer clear visuals in diverse applications with up to 1800 nits of brightness.

Units used outdoors during the day and night are often equipped with full-range dimming.

Mounting Options

Often ordered with our customizable pedestals and arm mounts, we build every unit to the customer's requirements. Traditional mounting tabs are also available.

NEMA and IP Protection

ToughStation workstations are built to meet NEMA 4, NEMA 4X, and IP66 ratings to protect the internal components from dust and water ingress. Made of stainless steel, the HMIs are an effective solution for resisting corrosion in washdown environments such as food and beverage production facilities.

Ready for Extreme Temperatures

The rugged components of ToughStation workstations allow for operation in temperatures ranging from -40°C to 70°C, depending on configuration. Our workstations offer reliable functionality in the cold or heat through configurations equipping the HMI for extreme temperatures.

Rugged Touchscreens

In addition to keyboards and peripheral devices, ToughStation computers and monitors can be operated using industrial-grade touchscreen solutions, including standard resistive, PCAP (projected capacitive), and resistive ArmorTouch.

Food Processing Operations

A NEMA 4X HMI ideal for washdown areas, our ToughStation units have integrated flat surface keyboards and options for function buttons, RFID readers, and touchscreens compatible with gloves and styluses

Life Sciences Applications

Our industrial workstations are customizable to meet the stringent requirements of life sciences applications.

They come in stainless steel enclosures built to meet NEMA 4X and IP66 protection standards, protecting the unit from corrosion in the face of frequent chemical sanitation processes
