WeighStation Weigh Scale HMIs

The WeighStation functions as an unattended truck weigh scale kiosk for efficient operations in the transportation industry.

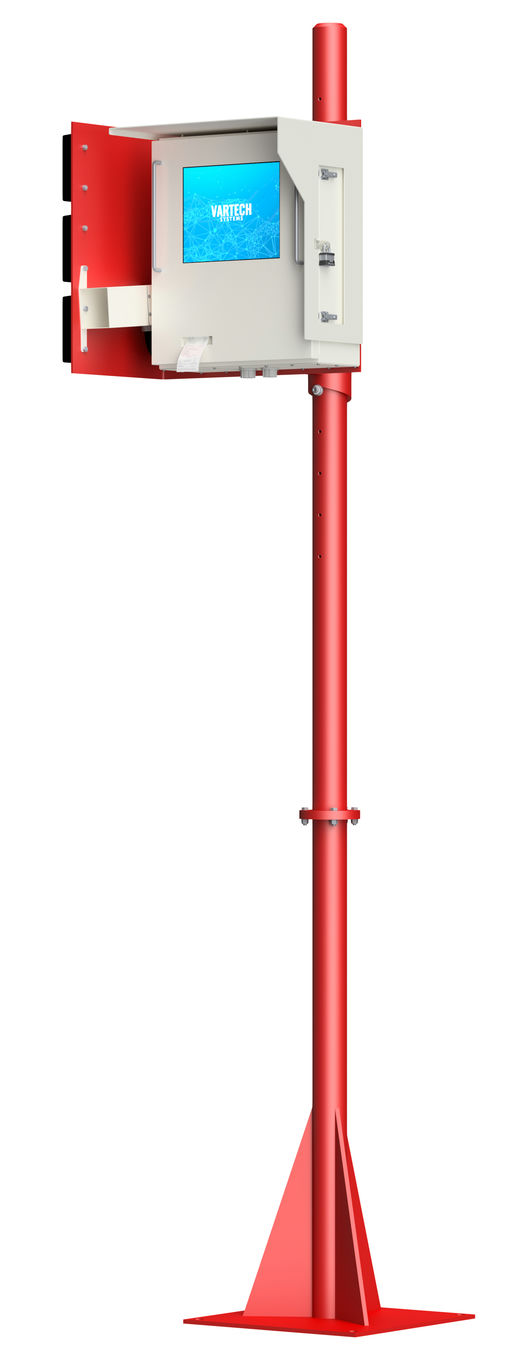

A rendering of VarTech's WeighStation weigh scale HMI kiosk with an integrated intercom system and printer
Full Specifications

Built to spec. No compromises.

Every unit is configured to your application's exact requirements, display size, I/O configuration, mounting style, and compliance level.
Compute & Memory
AI Accelerator
Supports GPU/NPU
Processor
Up to 14th Gen Intel® Core™
System Memory
Up to 64 GB
I/O & Connectivity
Connector Sealing
IP69
Environmental
Ingress Protection
IP65, IP66
NEMA Rating
NEMA 4X
Operating Temp
-20°C to 60°C
Cooling
Fans
Compliance & Certification
COMPLIANCE
VarTech is BABA, ITAR, NDAA, TAA, and RoHS compliant, and certified to ISO 9001:2015.
Enclosure
Finishes
Standard powder coat (black, white, or gray), custom color powder coat, grained stainless steel
Product Lines

How All-Weather compares.

All-Weather is VarTech's flagship rugged line. See how it compares to DiamondVue and ToughStation across the specs that matter.
Product Lines Comparison — VarTech Systems
Specification
Display sizes
Enclosure
IP rating
Connectors
Temperature
MIL-STD
Hazardous area
DiamondVue
6.5″ to 43″
Aluminum enclosure or stainless steel and aluminum enclosure
IP65, IP66
Industrial-grade connectors
−10°C to 60°C
461 · 810 · 1275 · 3009
CID2-Certified Products
ToughStation
8.4″ to 43″
Aluminum or stainless steel fabricated sealed enclosure
IP65, IP66
Waterproof circular connectors
−20°C to 60°C
461 · 810 · 1275
CID2-Certified Products, Certified Purge Systems
Features & use cases.

Available as a Computer or Monitor

The WeighStation can be configured as either a monitor or computer to integrate seamlessly with any weighing software and scale calibration technology.

Data Capture

Check-in terminal with streamlined user interface including RFID technology, barcode scanners, cameras, optional thermal printers, and microphone and speaker options.

Remote Management Connections

Remotely managed via wired KVM, fiber internet connection, or 4G-LTE for unattended scale operation without on-site personnel.

Rugged Displays

ArmorTouch touchscreens resisting abrasion, dirt, debris, and impact damage in outdoor kiosk environments.

Weather-Resistant NEMA and IP Protection

Built to NEMA 4X and IP66 for outdoor use with locking or non-locking front enclosure options.

Sunlight-Readable for Outdoor Applications

High-bright sunlight-readable LCDs with available sunshades for outdoor kiosk visibility in direct sunlight.

Unattended Weigh Scales

Synchronizes with scale calibration technology for accurate unattended truck weighing in transportation and logistics facilities.

Transportation and Logistics

Weigh scale HMI for truck yards, distribution centers, and freight facilities requiring automated check-in.
