Military and defense missions rely on technology that can withstand the harshest environments. You need equipment that operates in extreme temperatures, vibration, shock, electromagnetic fields, and low light conditions.
United States military standards, commonly called MIL-STD or MIL-SPEC, provide uniform test methods and performance requirements for equipment used by the Department of Defense.
These standards are not marketing buzzwords. They are formal documents that define design and test requirements so that gear is reliable, interoperable, and safe. They reduce risk by ensuring equipment works as intended and by making procurement more efficient. When your procurement decisions hinge on reliability, safety, and total cost of ownership, understanding MIL-STD certifications becomes vital.
Reliability and risk mitigation are central to defense acquisitions. Standardization ensures that equipment meets defined specifications and remains interoperable with other systems. By using MIL-STD certified products, you reduce the chances of equipment failure in critical operations.
Testing for shock, vibration, temperature extremes, electromagnetic interference, and night vision compatibility exposes design weaknesses early so manufacturers can correct them. This improves quality and long-term reliability.
Standardization also promotes competition among contractors, encourages quality assurance, and protects against fraud. Because equipment is evaluated against common criteria, procurement officers can compare offerings objectively and negotiate with confidence. Total cost of ownership decreases because MIL-STD certified devices typically require less maintenance and fewer replacements. In short, MIL STD certifications support mission readiness and financial stewardship.

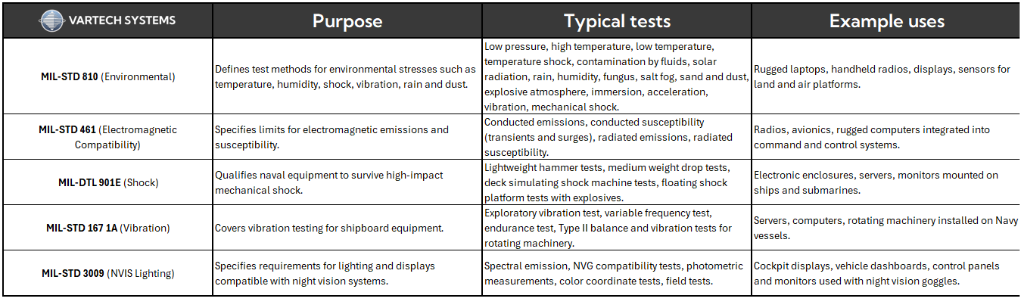

Below is a table summarizing major MIL-STD certifications relevant to rugged computers and displays. Each entry lists the standard name, its purpose, typical tests, and example use cases.
MIL-STD 810 is one of the most widely referenced standards for rugged equipment. It provides detailed test methods for replicating real-world environmental conditions.
The standard includes low-pressure tests for high altitude operation, high temperature and low temperature tests for thermal extremes, temperature shock tests that evaluate rapid changes, contamination by fluids, solar radiation, rain, humidity, fungus, salt fog, sand and dust, and tests for explosive atmospheres and immersion.
Mechanical stress tests include acceleration, vibration, and mechanical shock. When a vendor claims MIL-STD 810 certification, ask which test methods were applied. A rugged computer may pass vibration and temperature tests but not be rated for explosive atmospheres. Tailoring the test profile to expected conditions is part of the standard. Always request the test report to understand the scope and results.
Electromagnetic interference can disrupt communications and sensors, so equipment must be compatible with the electromagnetic environment. MIL-STD 461 sets emission limits and susceptibility thresholds. Tests include conducting emissions on power leads (CE101 and CE102) to verify that the equipment does not inject noise back into power systems.
Conducted susceptibility tests (CS101, CS106, CS115, CS116) evaluate how the device reacts to transients and surges. Radiated emissions tests (RE101, RE102) measure how much electromagnetic energy escapes from the equipment. Radiated susceptibility tests (RS101, RS103) evaluate performance when exposed to external electromagnetic fields.
When reviewing vendor documentation, confirm that both emission and susceptibility tests were completed. Also, check the revision letter (such as 461G) because each revision updates the frequency ranges and test methods.
Equipment on naval vessels must survive mechanical shocks from weapon impacts or collisions. MIL-DTL 901E defines shock tests based on equipment weight and criticality.
Lightweight tests use hammer drops to impart transient shock pulses. Medium-weight tests use heavier hammers and accommodate larger equipment. The deck simulating shock machine replicates shipboard mounting and uses a drop mechanism to generate controlled shock pulses.
The floating shock platform (barge test) is reserved for heavyweight and mission-critical equipment. Explosive charges are detonated underwater at various distances, and the equipment must remain attached and operational. The standard classifies equipment as Grade A (essential to safety) or Grade B (non-essential) and further divides them into classes I, II, or III depending on whether isolation devices are used.
When evaluating equipment, verify that the shock tests were appropriate for the weight and grade and that any isolation devices in the fielded configuration match those used in testing.
Shipboard vibration arises from engines, propellers, and rough seas. MIL-STD 167 1A specifies two categories of vibration tests. Type I environmental vibration tests subject equipment to a range of frequencies between 4 Hz and 33 Hz at amplitudes from 0.010 in. to 0.002 in. The exploratory vibration test identifies resonant frequencies by observing functional or structural damage.
The variable frequency test sweeps through the same frequency range in five-minute intervals while engineers record any failures. The endurance test then applies vibration at the identified critical frequencies for two hours to evaluate long-term effects. An endurance test for mounted equipment adds static loads of 2.5 g in vertical and transverse directions to simulate rough sea conditions.
Type II internally excited vibration tests address rotating machinery by requiring vibration amplitudes below a fraction of the operating speed and specifying balance criteria. When reviewing MIL-STD 167 1A documentation, confirm that the tests cover the equipment’s mounting orientation and operational speed. Vibration data helps prevent fatigue failures and informs isolation design.
Modern missions often use night vision goggles and displays or lights that emit energy in the NVG-sensitive band that can blind the user. MIL-STD 3009 defines spectral and photometric requirements for light sources to ensure NVG compatibility.
Compliance requires spectral emission tests to ensure the light does not radiate in the 625–930 nm band, photometric measurements to verify brightness, and color coordinate tests to confirm the color falls within defined zones. NVG compatibility tests evaluate performance with actual goggles, while field tests confirm that the equipment functions in operational conditions.
Displays are classified by type (direct view or projected image) and by class (A, B, or C) with different spectral limits. When procuring night vision displays, confirm the class and type that apply to your mission. A display labeled “NVIS compatible” may not meet the full requirements for MIL STD 3009, so request the test report.
Although not part of the focus, MIL-STD 1275 is important for ground vehicles. This standard describes the characteristics of 28-volt DC power supplied by military vehicles. It sets requirements for voltage ranges, cranking surges, transients, and spikes so that equipment operates reliably when connected to vehicle power.
For example, a compliant power supply must operate with a steady input of 20 V to 33 V and withstand starting surges and transients. It must tolerate injected surges up to 100 V for 50 msec and spikes of +250 V down to 100 V for short durations.
When evaluating vehicle-mounted computers or displays, verify that they meet MIL STD 1275, along with environmental and electromagnetic standards.
A common misconception is that “designed to meet” a MIL-STD is equivalent to being certified. Certification means a device has been tested by an accredited laboratory and meets specific requirements.
Compliance is a manufacturer’s claim that the product adheres to the standard. Some vendors design equipment to the standard but never complete the tests or only perform a subset relevant to their use case. Therefore, always ask for the test report. Test reports document the test plan, conditions, results, and any deviations. Without a report, there is no evidence that the product truly meets the standard.
Also, verify the revision of the standard, because requirements change with each revision.
When reviewing a test report, look for the following:
Marketing terms like “military grade” or “MIL-SPEC” are meaningless without context. To evaluate vendor claims:
Rugged computers and displays used in defense need to survive extremes of temperature, shock, vibration, electromagnetic interference, and low-light environments. VarTech Systems designs and builds our equipment in the United States.

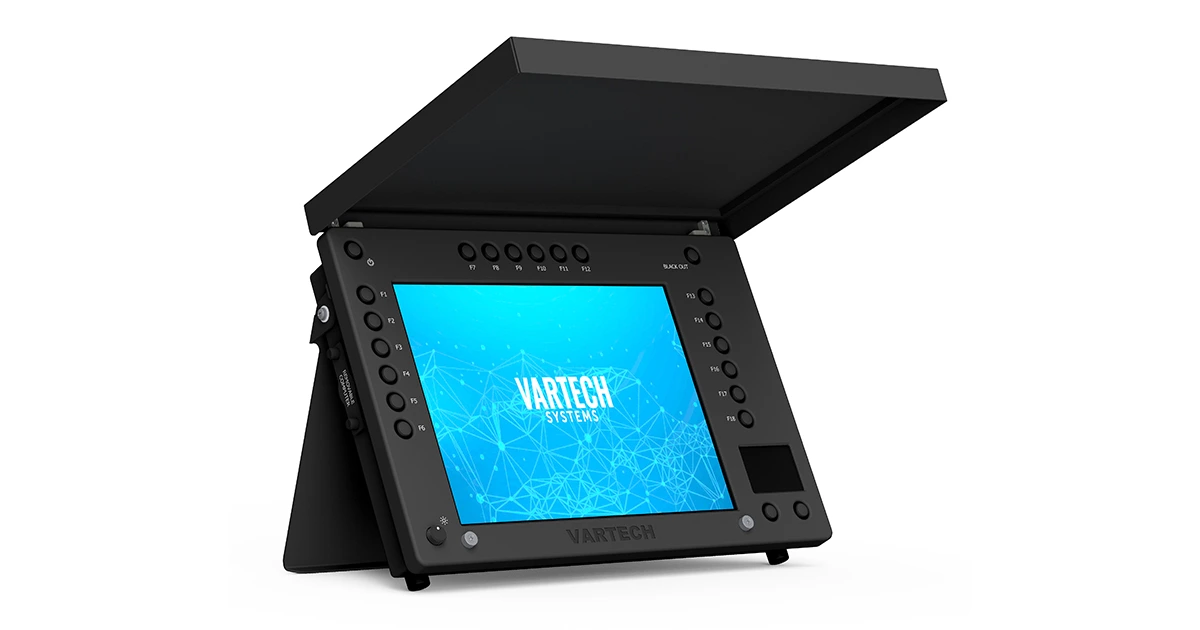

For example, the FieldStation portable computer is built to meet IP67 and NEMA 6 protection standards, offers a high brightness display up to 1,800 nits, and meets MIL-STD 461, MIL-STD 810, and MIL-STD 3009. It operates over a temperature range from −40 °C to 70 °C and includes up to 18 function buttons for mission control.
The FieldStation is used as a rugged field computer with satellite communications, radar, and night vision capabilities and is designed to provide situational awareness on the battlefield.
The unit’s milled aluminum enclosure with optical bonding resists moisture and impact. Such features result from adhering to MIL-STD 810 environmental tests, MIL-STD 461 electromagnetic tests, and MIL-STD 3009 NVIS requirements.
VarTech’s catalog also includes small form factor computers like the SuperCube and ToughCube that support several MIL-STD configurations for tight spaces and All-Weather monitors built with IP67 or IP68 ratings for rugged and marine applications.
When selecting rugged computing platforms, look for documented compliance with environmental, electromagnetic, shock, and vibration standards and confirm that displays meet NVIS requirements when night vision operations are anticipated.
Selecting equipment for military and defense operations is more than choosing a rugged product; it requires verifying MIL-STD certifications, reviewing test documentation, and aligning test profiles to mission needs.
VarTech Systems has decades of experience designing and manufacturing rugged computers and monitors that meet demanding military standards. Contact VarTech Systems to discuss your application and receive guidance on MIL-STD requirements for reliable, mission-ready computers and displays.
